Ceramic Fiber Textiles

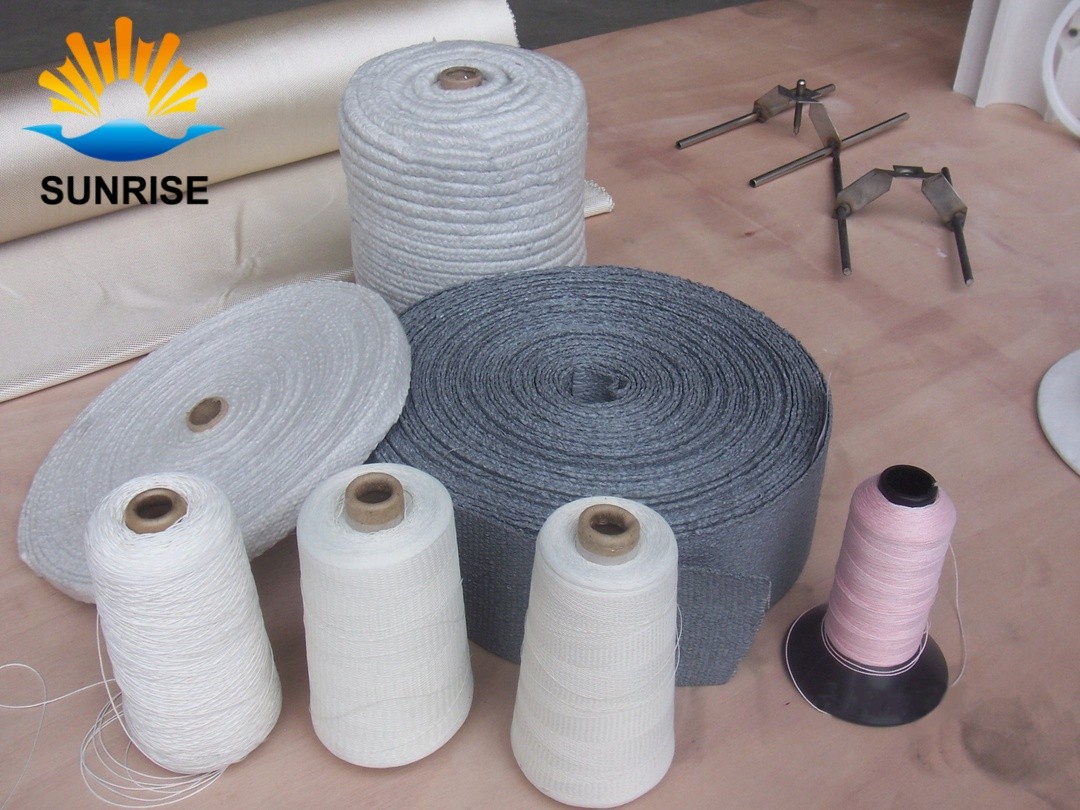

Ceramic Fiber Textile includes ceramic fiber cloth, tapes, ropes, yarns, and other textile products, which are manufactured from ceramic fiber yarns reinforced with fiberglass filaments or alloy steel wires.

Al2O3+ SiO2% : 99.4

Service temperature (°C):

Stainless steel wire(°C): 1050

Glass fiber yarn(°C): 650


   PRODUCT DESCRIPTION

Introduction

Ceramic Fiber Textile includes ceramic fiber cloth, tapes, ropes, yarns, and other textile products, which are manufactured from ceramic fiber yarns reinforced with fiberglass filaments or alloy steel wires. The products feature high tensile strength, good flexibility, and excellent processability.


Ceramic Fiber Textile combines excellent thermal insulation performance with the flexibility and mechanical strength of textile materials. It can be processed into various forms according to different application requirements and provides reliable thermal insulation and protection in high-temperature environments.


With excellent thermal insulation performance, low thermal conductivity, high tensile strength, good electrical insulation properties under suitable conditions, and good chemical stability, Ceramic Fiber Textile is suitable for various high-temperature insulation, sealing, and protection applications.


Sunrise provides different types of Ceramic Fiber Textile products according to customer requirements, including cloth, tapes, ropes, yarns, and other customized specifications.


Features

Excellent thermal insulation performance.

Low thermal conductivity.

High tensile strength.

Good electrical insulation performance under suitable temperature conditions.

Good chemical stability and reliable high-temperature performance.

Flexible, lightweight, and easy to process.


Applications

Industrial Furnace:
Industrial furnace curtains, heat shields, and protective covers for high-temperature operations.


Thermal Insulation and Piping:
Heat pipes, insulated containers, cable protection, and fuel pipeline insulation.


Furnace Sealing:
Furnace door sealing, flange connections, and flexible expansion joint sealing.

   TECHNIQUE DATA


 Stainless steel wireGlass fiber yarn
Service temperature (°C)1050650
Melting point (°C)17601760
Density (Kg/m3)350-600350-600
Thermal conductivity (W/mK ,ASTM C201, mean 800 °C)0.170.17
Loss on ignition(%)10-2010-20
Chemical composition (%)
Al2O346.646.6
Al2O3+ SiO299.499.4
Available size
ClothWidth: 1000-1500mm,Thickness: 2, 2.5, 3, 5, 6mm
TapeWidth: 10-150mm,Thickness: 2, 2.5, 3, 5, 6, 8, 10mm
Wring ropeDiameter: 3, 4, 5, 6, 8, 10, 12, 14, 15, 16, 18, 20, 25, 30, 35, 40mm
Round ropeDiameter: 5, 6, 8, 10, 12, 14, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50mm
Square rope5*5, 6*6, 8*8, 10*10, 12*12, 14*14, 15*15, 16*16, 18*18, 20*20, 25*25, 30*30, 35*35, 40*40, 45*45, 50*50mm
ThimbleDiameter:10, <span style="font-fam
